In today’s Chemistry class, We will be learning about Nitrogen. We hope you enjoy the class!



CONTENT

• General Properties of Nitrogen Family.
• Laboratory Preparation and Industrial Preparation of Nitrogen.
• Properties and Uses of Nitrogen.
• Nitrogen Cycle.





GENERAL PROPERTIES OF NITROGEN FAMILY (GROUP V ELEMENTS)

The group V elements include Nitrogen, Phosphorus, Arsenic, Antimony and Bismuth. There are more differences than similarities between the elements in this group.

1. Nitrogen is a diatomic gas and does not exhibit allotropy. Phosphorus is a typical non-metal and exhibits allotropy. Arsenic and Antimony are metalloids; while bismuth is a metal.
2. Nitrogen is a colourless gas. Phosphorus exists in a variety of allotropic forms like white and red phosphorus. Arsenic exists as a dull grey metallic solid. Antimony and bismuth is silvery-white solid.
3. Nitrogen is the most electronegative element in the group. It combines with metals and non-metals to form a variety of compounds.



ELECTRONIC CONFIGURATION

The electronic configuration of the group V elements is as follows:

Nitrogen = 7: 1s² 2s² 2p³

Phosphorus = 15: 1s² 2s² 2p⁶ 3s² 3p³

Arsenic = 33: 1s² 2s² 2p⁶ 3s² 3p⁶ 3d¹⁰ 4s² 4p³

Antimony   = 51: 1s² 2s² 2p⁶ 3s² 3p⁶ 3d¹⁰ 4s² 4p⁶ 4d¹⁰ 5s² 5p³





NITROGEN

Nitrogen occurs chiefly as a free element in the air. It makes up 78% by volume of the atmosphere. It also exists in combined form in many compounds e.g. ammonia, urea, proteins etc.

LABORATORY PREPARATION

From Air

It can be obtained from air by passing air through caustic soda to remove CO₂ and

overheated copper turnings to remove O₂ respectively. The nitrogen obtained is not pure, it contains 1% by volume of rare gases and it is denser than air.



Pure nitrogen is obtained in the laboratory by chemical method. The following chemicals are used to prepare nitrogen.

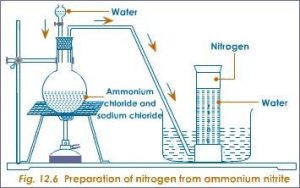

1. Thermal decomposition of ammonium dioxonitrate (III)

a.    NaNO_2(aq) +  NH₄Cl_(aq)     → NH₄NO_2(aq) +NaCl_(aq)

b.    NH₄NO_2(aq) →   2H₂O_(l)  + N_2(g)



2. Thermal decomposition of ammonium heptaoxodichromate (VI)

(NH₄)₂Cr₂O_7(s)     →  Cr₂O_3(s)   +    4H₂O_(l)  +  N_2(g)



3. Oxidation of ammonia by hot Copper (II) oxide

2NH_3(g)     +   3CuO_(s)      →    3Cu_(s)      + 3H₂O_(g)  +  N_2(g)



4. Reduction of dinitrogen (I) oxide by red-hot copper.

N₂O_(g)       + Cu_(s)        →    CuO_(s)         +      N_2(g)





INDUSTRIAL PREPARATION

Industrially, nitrogen is obtained by fractional distillation of liquid air.



EVALUATION

1. Write the electronic configuration of nitrogen and phosphorus.
2. Using balanced equations, state TWO methods of preparing nitrogen in the laboratory.



PHYSICAL PROPERTIES

1. It is colourless, odourless and tasteless
2. Pure nitrogen is lighter than air.
3. Slightly soluble in water
4. Melting point – 210⁰C and   boiling point is -196⁰C



CHEMICAL PROPERTIES

1. It reacts with very electropositive metals to form nitrides

3Mg_(s)     +       N_2(g)    →    Mg₃N_2(s)

2. It reacts with non – metals like hydrogen and oxygen to form ammonia and oxides respectively.

N_2(g)     +       3H_2(g)      →   3NH_3(g)

N_2(g)     +       2O_2(g)      →   2N₂O_(g)



USES

1. It is used industrially to manufacture ammonia.
2. Liquid nitrogen is used as a cooling agent.
3. It is used as a preservative in packaged foods to prevent rancidity.



EVALUATION

1. State TWO physical properties and TWO chemical properties of nitrogen.
2. Mention THREE uses of nitrogen.

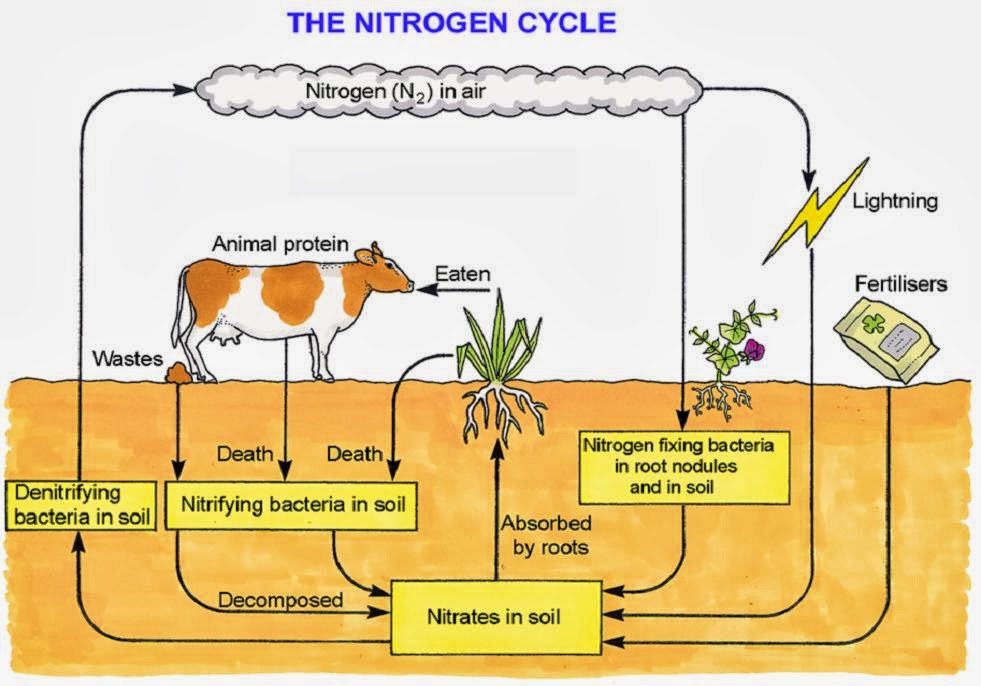

The stages in which atmospheric nitrogen is converted into soil nitrogen and back to free nitrogen occurs in the following ways:

1. Oxidation of atmospheric nitrogen: During lightning and thunderstorm, there is electrical discharge in the atmosphere which cause atmospheric nitrogen and oxygen combine to form oxides of nitrogen which can dissolve in rainwater as dioxonitrate (III) and trioxonitrate (V) acids. These acids go into the soil and react with mineral salts in the soil to form trioxonitrate (V) salts which are absorbed by plants.

N_2(g)    +  O_2(g)                       2NO_(g)

2NO_(g)  +  O_2(g)                    2NO_2(g)

4NO_(g) + O_2(g)   +  2H₂O_(l)                      4HNO_2(aq)

4NO_(g) + O_2(g)   +  2H₂O_(l)                    4HNO_3(aq)

2. The action of nitrogen-fixing bacteria: Soil micro-organisms like Rhizobium living in root nodules of leguminous plants are able to convert atmospheric nitrogen into organic nitrogenous compounds which are used directly by the host plants. These compounds are released into the soil when these plants die. Other free-living micro-organisms in the soil like Azotobacter and Clostridium are also able to convert atmospheric nitrogen directly into trioxonitrate (V) which is absorbed by plants. These processes are known as nitrogen fixation.
3. The decay of organic matter: When plants and animal die, putrefying bacteria and fungi in the soil convert organic nitrogenous compounds to ammonia. Nitrifying bacteria like Nitrosomonas and Nitrobacter convert the ammonia to trioxonitrate (V) which can again be absorbed by plants. These processes are known as nitrification.
4. Denitrification: Trioxonitrate (V) salt in the soil can be converted to gaseous nitrogen by denitrifying bacteria. The process is known as Denitrification. The nitrogen so formed escapes into the atmosphere, where it becomes atmospheric nitrogen. Denitrifying bacteria, therefore, reduces the quantity of trioxonitrate (V) in the soil.



GENERAL EVALUATION/REVISION

1. Using a balanced equation ONLY, show how nitrogen can be prepared in the laboratory.
2. Outline the stages involved in the nitrogen cycle.
3. Write the electronic configuration of N^3- and P^5-
4. Balance the following redox equation: I^– +  MnO₄^–  →  IO₃^–  +  MnO₂ in basic medium
5. State the effect of the following on the equilibrium position of the reaction below: 3Fe(s) +  4H₂O_(g)             Fe₃O_4(s)  +  4H_2(g)  ∆H = +ve
   1. • Increase in temperature
      • Increase in pressure
      • Using iron filings instead of an iron rod.



READING ASSIGNMENT

New School Chemistry for Senior Secondary Schools by O. Y. Ababio (6^th edition), pages 404-405, 422-423.



WEEKEND ASSIGNMENT

SECTION A: Write the correct option ONLY

1. In which group of the periodic table is nitrogen found? (a) 2 (b) 5 (c) 7 (d) 6

2. The boiling point of nitrogen in ⁰C is (a) -183 (b) -196 (c) 200 (d) 240
3. The percentage of nitrogen in air is (a) 78 (b) 75 (c) 71 (d) 67
4. The following are uses of nitrogen except (a.) as a cooling agent (b). to prevent rancidity (c). in the manufacture of fertilizers (d). in laundry.
5. The atomicity of nitrogen is (a) 1(b) 2 (c) 3 (d) 4



SECTION B

1. Briefly describe the preparation of nitrogen from air in the laboratory.
2. State three physical properties and two chemical properties of nitrogen.
