Meaning and Types of Logic Gates



Welcome to class!

In today’s class, we’re going to be talking about Meaning and types of logic gates. I trust you will enjoy the class!

Meaning and Types of Logic Gates

Meaning and Types of Logic Gates

Imagine a tiny world where everything is either on or off, like a light switch. This binary language forms the backbone of electronics, and the building blocks of this language are called logic gates. They act like microscopic decision-makers, processing information (0s and 1s) and producing an output based on specific rules. Buckle up, as we dive into the exciting world of logic gates!

What are Logic Gates?

Think of them as tiny electronic switches that take input signals (usually 0s and 1s) and perform operations on them based on their internal rules. Each gate has one or more inputs and one output, acting like a mini-calculator for binary data.

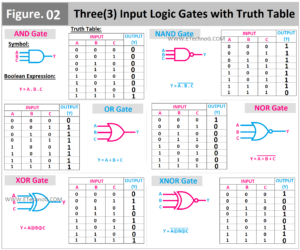

Types of Logic Gates

There are seven main types of logic gates, each with its unique personality and function:

Meaning and Types of Logic Gates

  1. AND Gate: The cautious gatekeeper. It only outputs a 1 (true) if ALL its inputs are 1s. Imagine two friends needing both a key and a password to open a door, just like an AND gate.
  1. OR Gate: The inclusive party host. It outputs a 1 (true) if AT LEAST ONE of its inputs is 1. Think of a light switch with two buttons, either one turning on the light, like an OR gate.
  1. NOT Gate: The rebel with a cause. It simply inverts the input. If it gets a 0, it outputs a 1, and vice versa. Imagine a mischievous genie who always twists your wishes!
  2. NAND Gate: The AND gate’s mischievous cousin. It outputs a 1 (true) only if ANY of its inputs are 0s. Like an AND gate with a negation twist!
  1. NOR Gate: The OR gate’s opposite twin. It outputs a 1 (true) only if ALL of its inputs are 0s. Like an OR gate standing on its head!
  1. XOR Gate: The exclusive party animal. It outputs a 1 (true) only if EXACTLY ONE of its inputs is 1. Imagine a seesaw where only one person can be on at a time!
  1. XNOR Gate: The inclusive seesaw friend. It outputs a 1 (true) if BOTH of its inputs are the SAME (either 0 or 1). Like a seesaw balanced with two people of the same weight!

These tiny logic gates form the foundation of digital circuits in everything from computers and smartphones to video game consoles and traffic lights. By combining different gates, we can create complex logical operations, making these digital devices think and work!

We have come to the end of today’s class. I hope you enjoyed the class!

In the next class, we shall be discussing the Truth table.

In case you require further assistance or have any questions, feel free to ask in the comment section below, and trust us to respond as soon as possible. Cheers!

Assignment:

  1. Explain the difference between an AND gate and an OR gate using a real-life analogy.
  2. What is the output of a NOT gate when its input is 0? What about 1?
  3. Why is the NAND gate considered “universal”? Can you design a simple circuit using only NAND gates?
  4. Imagine a security system requiring two fingerprint scanners. How would you use logic gates to ensure both scans are needed for access?
  5. Create a truth table for an XOR gate and explain its application in a simple coding example.
